01. Introduction to Telco Cloud – Overview & Benefits

Updated: Jun 16, 2020

Covering Introduction & Tutorial for Telco Cloud Network , Virtualization , SDN / NFV , or Cloud Native Networks .. I am going to discuss all of these along with real life examples . In this Module , We will understand Why Cloud Native Networks have become necessity for Telecom Operators . What values & Benefits cloud networks are going to bring it to Operators . This includes :-


Introduction to Telco Cloud Network

  1. Basics & Introduction of Telco Cloud

  2. Why Cloud Network are required in Telecom ?

  3. How cloud solve problem of Telecom Operators & Carriers

  4. How SDN & NFV works in telecom

  5. How Cloud and Virtualization helps for better Capacity Management ?

  6. The Cloud Solution





Telco Cloud Overview

Telco Cloud Overview

People call it by many names . Cloud Network , Virtualization , SDN / NFV , More Complex names like Container / Hypervisor , or Cloud Native Networks .. I am going to discuss all of these along with real life examples . In this Video , We will understand Why Cloud Native Networks have become necessity for Telecom Operators . What values & Benefits cloud networks are going to bring it to Operators


Network Functions Virtualization (NFV) and Software Defined Networking (SDN) are Two Pillar stone of this technology . With cloud computing technologies, operators can achieve better usage and performance from network nodes

Why we call this as Cloud Network ?

  • The way you can’t control length , breadth , Appearance of cloud . You can’t also touch & feel the clouds but yet they are always there to serve you . Similarly , The cloud Network or Virtualized networks are serving us . The term cloud is used to describe some network which is far away from you . You can’t touch and feel this network physically

  • The cloud network also refer to servers, networks, and data centers that were running on Shared resources instead of dedicated hardware .

  • Also , Cloud Networks are typically Convenient Accessible from anywhere , They can be used as private cloud which are accessible within closed environment within organization . There also Public & Hybrid which are exposed to external world as well

  • Other properties of cloud network includes :-

> Rapid expansion

> Very high elasticity

> On Demand network Access

> Support for Scale In/ Scale Out Operations

> Automated Operations such as Self-Service , Self-Healing

> Multi-Tenancy

> Support for Telemetry ( Reports , Performance , Usage , Billing , Resource &

Revenue Plotting )

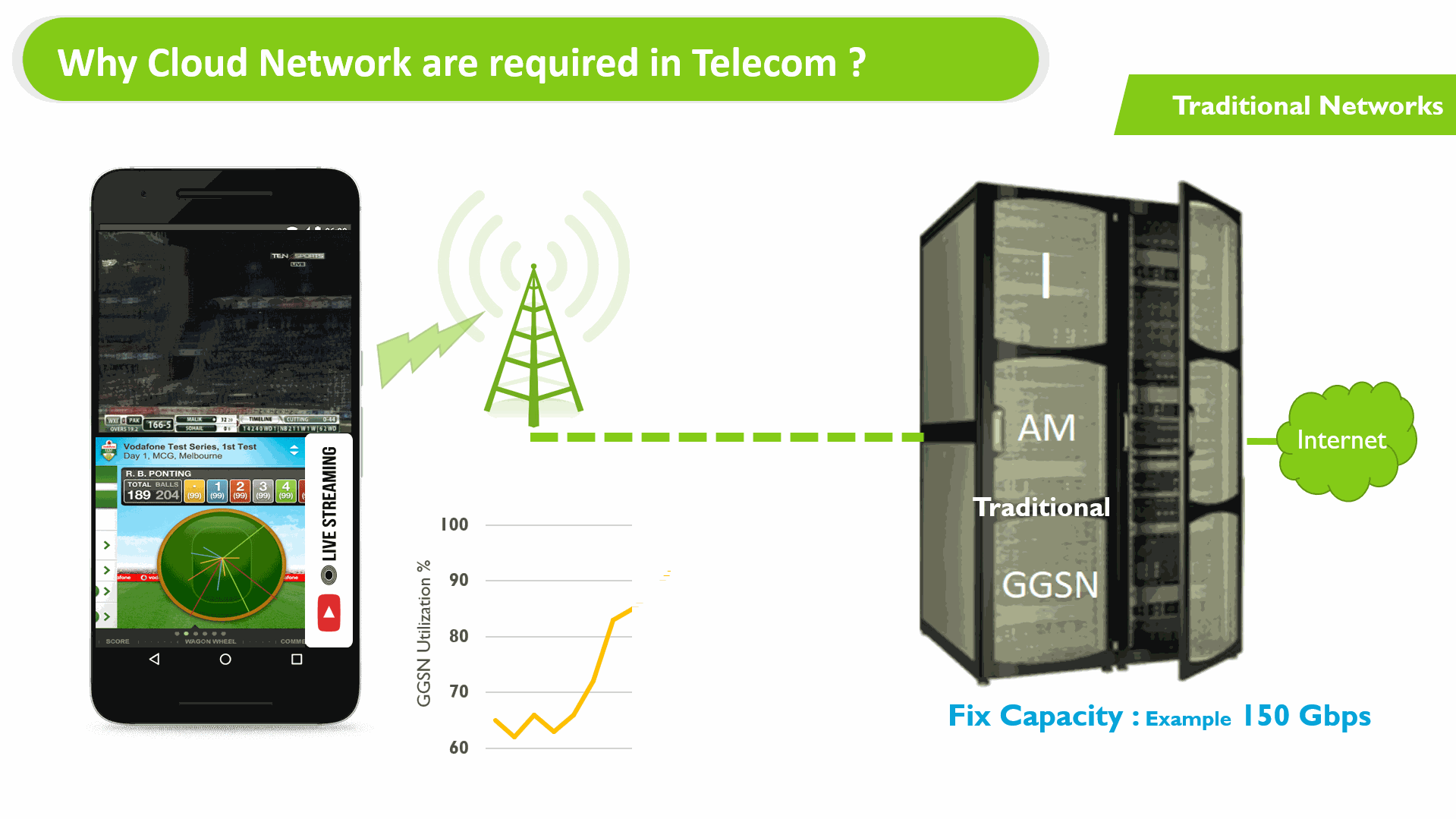

Why Cloud Network are required in Telecom  ? ( Use Case )

Why Cloud Network are required in Telecom (3)

Here , I am trying to explain you importance & need of Cloud Native networks with Examples from our everyday Life . I have taken example of Packet Core Network here . You can consider similar example for any other network such as Voice core or Volte IMS or VAS Nodes such as SMSC or Prepaid Nodes

  1. Now , Let’s assume there is Cricket or Soccer or Football match tonight .  As consequence , More and more people will start watching this match online & The traffic will start increasing rapidly

  2. With more users coming online & the Utilization of GGSN will start shooting up .. Ultimately Utilization will keep on rising and will gradually going to touch 95% . Users are still able to see match as some headroom is left for additional traffic

  3. Now once utilization touch 100% , Traffic can’t further scale anymore & users will get buffering . At this time , You can see Red Dot’s on GGSN Utilization chart where user experience is suffered to capping of traffic done by GGSN . Now users will start getting buffering as visible on handset on left .  Users can’t view match anymore due to extremely high utilization on Network here



Value proposition of Cloud Network for Telecom ? ( Use Case )

Value proposition of Cloud Network

Now , Let’s understand what value proposition cloud brings it to us . Take similar situation where users are using Cloud Native PACO GGSN this time


  1. With start of Match , Traffic & Users will start shooting up & eventually will reach to 90-95% . Now , Cloud Manager wakes up and analyze that situation is bad & we need to do something as utilization is overshooting . Cloud manager is actually VNFM Instance which is internal component of cloud Native network looks after overall health & utilization of Cloud network including FCAPS (fault-management, configuration, accounting, performance, and security) . Here , Cloud Manager will see that utilization is overshooting and it will scale out new capacity on the fly to address this high traffic . You can see this scale out on screen where new Virtual machines are put onto the task to handle this exploding traffic

  2. Now , Let’s assume that Match is very very interesting , The traffic is still increasing & We need to have more compute and processing . With help of Automation & Orchestrator , The Cloud networks can further scale new capacities by creating new GGSN at New location where-ever we are having some free hardware available in Network

  3. With help of NFV , We create the new capacities and with help of SDN , We can create highways and pathways to provide connectivity between users and this new Node to offload some of traffic . Now , You can see the power of this cloud network to handle traffic more effectively and in flexible way to meet any dynamic user requirements



Why Telco Cloud ?

Why Telco Cloud

Now , Let’s understand the true problems of Mobile Operators & How cloud solve this ..

  1. The 1st problem is the Lack of Scalability : which we have already seen , This includes the Problem with Scaling In / Scaling Out the capacities . This includes handling of Uncontrolled and unpredictable traffic explosion which is usually seen during Matches , Events etc ..

  2. The 2nd issue is Lack of Adaptation : In telecom domain there is lot of Inter-Op testing required between two nodes for making it operational With traditional hardware , There is always challenge with new Technology such as 5G & IOT . There also also issues with New Functionality such as New Links or New Interface required . Moreover , There is always lots of adaptation required for any New Business Model which usually gets delayed with traditional hardware

  3. The 3rd issues is with Lack of Flexibility : where you can’t balance traffic between two nodes . Typically Voice traffic peaks at 1900 hrs where Data traffic peaks at 2300 hrs . You can’t shuffle resources between circuit switch network & packet Core network in case of traditional networks . In case of Cloud Native deployment , you easily move virtual machines to ensure optimum loading and load balancing of traffic between various nodes . This will not only improve user experience but also will save CAPEX Investment . Moreover , There is always high amount of OPEX required in AMC and keeping spares available for Traditional hardware . This cost can also be saved by migrating to Cloud Native network where overall TCO is less .

  4. In last , There is always Lack of Speed with traditional networks such as Slow to Change & Innovate . One feature will be available with one vendor but not available with another one . With Cloud Native networks , You can easily switch the Vendors to avoid Vendor Lock in & get benefits . With Traditional network , Your Time to Market for new services is High & Dynamic Requirements can’t be met such as raised by Regulatory or Business teams



Get Right Capacity at Right time

Get Right Capacity at Right time

With Traditional networks , Manual capacity planning & Deployment are incompetent to handle utilization properly . There is always delayed response to rapid & unpredictable growth in traffic . Delays in Supply chain , Import are further going to make situation worse . As we are aware that Traditional networks takes much more time , much more cost , much more manpower in deployment of capacity


With conventional planning & traditional Network , actual Traffic either leads or lags the installed capacity . Due to this, If you delay deployment , Your customers are going to suffer due to High Traffic , If you prepone Deployment , You will end up in deploying too much of wasted capacity . On left hand side , You can see capacity being deployed in stair-case model where Red-Spots are showing Customers suffering with traditional networks due to High utilization


Cloud Native networks provides Right capacity at right time . You can see this in Graph on right hand side . In Cloud based networks , We deploy Generic Hardware in advance & capacities are procured and deployed in terms of Software License . There are 2 efficiencies which Software based capacity brings to us – 1st One is speed of Expansion . License can be expanded on the fly as & when required , 2nd one is Costing model .. Basically you can pay as per used licenses rather that deployed license . This brings lot of Cost saving and None of Money wasted on these licenses are sitting idle and wasting money as happens in Traditional networks


Cloud network means traffic follows installed capacity very closely . There is ample usage of resources . There is Lower planning , procurement and deployment effort required which will not only save money but also keeps your customers happy as utilization are always in control



Problem of  Telco Operators

Why Telco Cloud 2

There are 4 Main problem of every Carrier or Mobile Operator ….

a) Low ARPU b) Low Revenue as compared to

c) High Exploding Traffic d) Multi-Vendor complexity


This is typical example of Traditional Mobile operator Network where we can see Radio from one Vendor , Circuit core from another vendor , Packet Core from different vendor & VoLTE IMS from some other vendor . This brings lots of complicity where every new feature functionality takes lot of time and there is always challenge in day to day Operations


With Cloud Networks , You can simply download & Install Node & Vendor of your choice avoiding Vendor Lock in . These possibilities are not there with Traditional networks . Ultimately Cloud networks are going to help Mobile operator to improve Innovation cycle , Increase Speed of deployment & implementing new features , Better Flexibility & Solve the Scale problem


These benefits ultimately leads to better user experience & Innovative products leading to new revenue streams and ultimately helps in improving Revenues & ARPU



How Telco Cloud Helps ?

How Telco Cloud Helps

The cloud Network for Telecom Operator improves the Investment cycle by reducing TCO and improve operational efficiency . Investing in Cloud based network rather than Traditional networks will bring Strategic Alignment , Mitigate the Risks of Legacy Investment , Improve Return of Investment , Make the networks Future Proof


Typical benefits for Cloud Networks will bring below benefits :-


Cost Reduction & Uptime

  1. Better Utilization of Resources , Max Re-Use

  2. Avoid Vendor Lock-in

  3. Better Network Management will reduce OPEX

  4. improve TCO through centralization, automation and efficiency

  5. Better Uptime with Standardized Hardware

Network Flexibility

  1. Scale Service UP & Down Quickly

  2. On Demand Network Resources

Ease of Business

  1. Ability to respond quickly to customer Demands , Create New Services on the fly

  2. Rapid Deployment of New Services

  3. Innovations are Welcome



Cloud Solution ..

Solution ..

Here  ,I am trying to show , How we are going to run these network in Future once these are Virtualized . On Left hand side , You can see traditional networks which are having Traditional Rack / Stack Model . Here every Rack represents one type of Node . These traditional nodes are specifically meant on One Function or One Purpose . We also call them as Purpose build hardware . These nodes could be HLR , MSCs , SMSC , VAS Nodes etc.. Typically installed in Switch Room


Cloudification or Virtualization is journey to migrate these Purpose build hardware running in Switch rooms to the Virtualized Nodes running Generic hardware deployed in Data Center


Three Transitions have been discussed here :-

  1. Switch Rooms to Data Centers

  2. Purpose build hardware such as HLR by Nokia , MSC by Ericsson to Generic hardware such as Dell or HP

  3. Physical device in rack to Virtual Device in Cloud Network

  4. In last , We will also discuss and use Vendor specific software to Open source software such as Openstack etc..

The cloud native network will be basically set of Multiple clouds running powered by Openstack Cloud Managers

Solution 2 ..

In this example , I have tried to show migration of physical and traditional HLR or MSC or PGW or Router into Virtualized device running in Cloud . Please Note … They all share common hardware which is Generic One such as Dell or HP


Well , Now we have understood high level benefits and requirements of Cloud Native or Virtualized networks for Telco Operators .  In Next Video , I am going to cover how NFV works & how its different from SDN


Hope this article will bring more value for you . Thanks
